Welcome to your AM-275 support portal.
Use your equipment-linked account to continue.
Induction sealing support
Model AM-275
Induction Sealer.
Authorized service documentation, safety guidance, configuration references, and daily operation support for the AM-275 electromagnetic induction cap sealing system.
Reserved: AM-275 product photography
Primary machine view
Front, side, sealing-wand, and control-panel imagery will appear here when supplied.
Rapid onboarding
Quick Start: First Seal in Five Steps
Use this concise sequence to set up, calibrate, and inspect your first AM-275 seal. Video timestamps will be inserted after source footage is received.
Prepare cap & liner
Install the induction foil with foil-side facing the container lip; tighten the cap securely.
Set time & power
Start with the recommended parameter range for the closure diameter and liner construction.
Center & trigger
Position the head level and concentric with the closure, then activate the trigger cycle.
Inspect the seal
Allow cooling, remove the cap, and confirm a full perimeter bond without scorching.
Reserved: operator video walkthrough
AM-275 operating demonstration
This space is prepared for the supplied operating video, including a player, timestamped milestones, and transcript-backed key instructions.
VIDEO MODULE
READY FOR SOURCE FILE
READY FOR SOURCE FILE
Safety protocols
Operational Safety Precautions
Use the AM-275 only as directed by trained personnel and with compatible non-metallic container systems.
Critical: Non-metallic containers only
Never operate on metal containers or caps with exterior metal shells. An induction field can create arcing, fire, or equipment damage.
Caution: Cooling & high-frequency exposure
Keep vents clear. Avoid contact with the head during operation and allow cooling between high-duty cycles. Follow manufacturer guidance for medical implants.
Calibration baseline
Sealing Parameter Matrix
Use these placeholders as a starting framework; final settings will be verified against your AM-275 operating video and approved application data.
| Cap diameter | Bottle material | Liner construction | Recommended time | Power level | Expected outcome |
|---|---|---|---|---|---|
| 20–35 mm | HDPE / PP | Paper / pulp-backed foil | 0.6–0.9 s | 3–4 | Full circumferential peel seal |
| 35–60 mm | PET / PE | Foam-backed foil | 1.0–1.4 s | 4–5 | Clean hermetic bond |
| 60–90 mm | HDPE / treated glass | Glass / foil liner | 1.4–2.0 s | 5–6 | Tamper-evident barrier |
| 90–120 mm | HDPE / PP jar | Universal induction foil | 2.0–2.8 s | 6–8 | Full perimeter adhesion |
Comprehensive manual
Standard Operating Manual
Apply this pre-operation and quality-control checklist at every AM-275 installation and production start-up.
Unpacking & pre-operation
Commission the equipment in a dry, stable, serviceable work area.
- Place on a level, heat-resistant workbench.
- Verify line voltage matches equipment rating.
- Keep at least 15 cm of clearance around cooling vents.
- Seat the sealing wand firmly in the output connector.
- Reset the digital seal counter before production.
Quality control & verification
Confirm seal integrity before releasing a production run.
- Invert and squeeze the sample container to check for leakage.
- Unscrew the cap to inspect polymer bonding.
- Check for scorching caused by excess energy.
- Check closure edges for incomplete adhesion.
- Document approved batch parameters in production records.
Equipment Upgrades & Retrofits
AM-275 Machine Store: Options & Spare Parts
Browse factory-engineered bolt-on options, quality detectors, and OEM replacement parts for your registered AM-275 sealing system.
Software & Controller Updates
Firmware Packages & Flash Procedures
Download verified binary images for the AM-275 Touchscreen HMI and Inverter Power Board, complete with safety procedures.
| Version | Release Date | Status | Target Hardware | Notes & Changelog | Action |
|---|
| Version | Release Date | Status | Target Hardware | Notes & Changelog | Action |
|---|
Illustrated Service Procedure
HMI Touchscreen Firmware Flashing Guide
Follow these 5 verified steps to update the AM-275 Smart Seal Touchscreen HMI using an SD/SDHC card. Illustrated directly from factory service footage.
STEP 01
01 / POWER ISOLATION
Power Down the Machine Completely

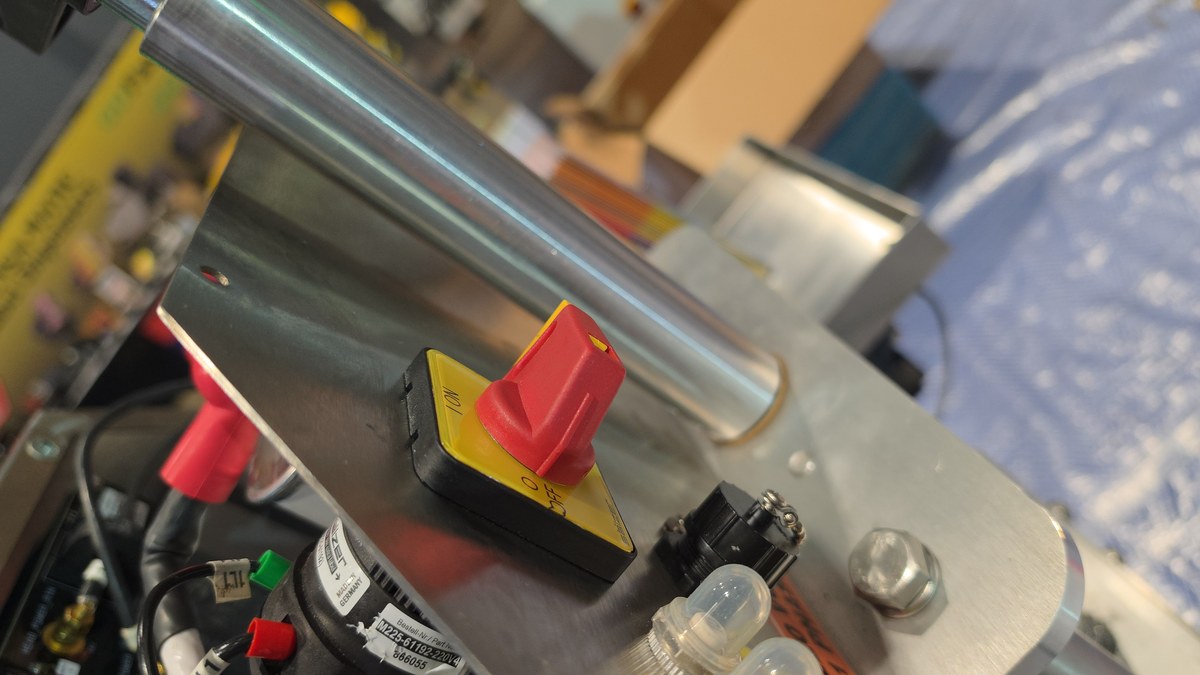

Locate the main yellow/red rotary disconnect switch on the AM-275 side column. Rotate the switch to the OFF (0) position and verify the touchscreen is no longer powered before accessing the HMI controller.
Service Note: The illustrated sequence begins with the main rotary disconnect in the 0 (OFF) position. Exact narrated safety guidance will be added after the video audio is transcribed.
STEP 02
02 / SD CARD INSERTION
Insert FAT32 SD Card into HMI Rear Slot

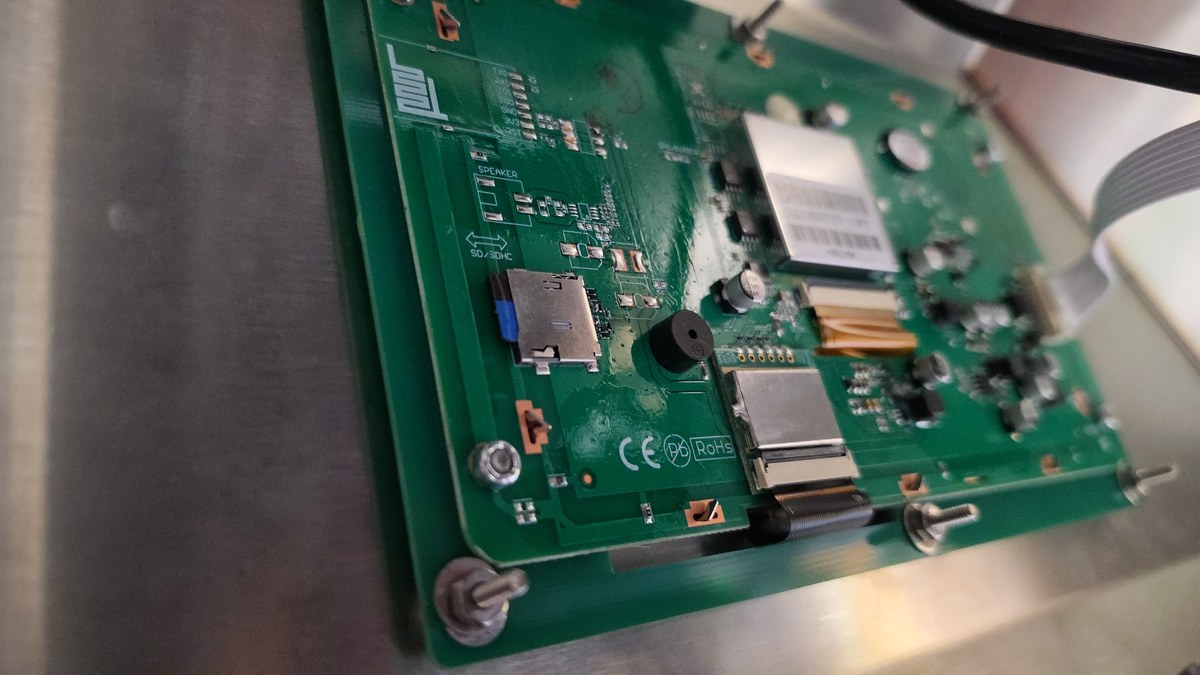

Access the rear of the Smart Seal touchscreen panel. Locate the onboard SD / SDHC slot, shown beside the ribbon connector and piezo beeper. Insert the prepared firmware SD card firmly into the slot.
Service Note: The screen controller identifies this port as SD / SDHC. The final card format, file name, and folder-path requirements will be confirmed from the narration.
STEP 03
03 / POWER ON & BOOTLOADER INITIALIZATION
Switch Main Power ON to Trigger Flashing

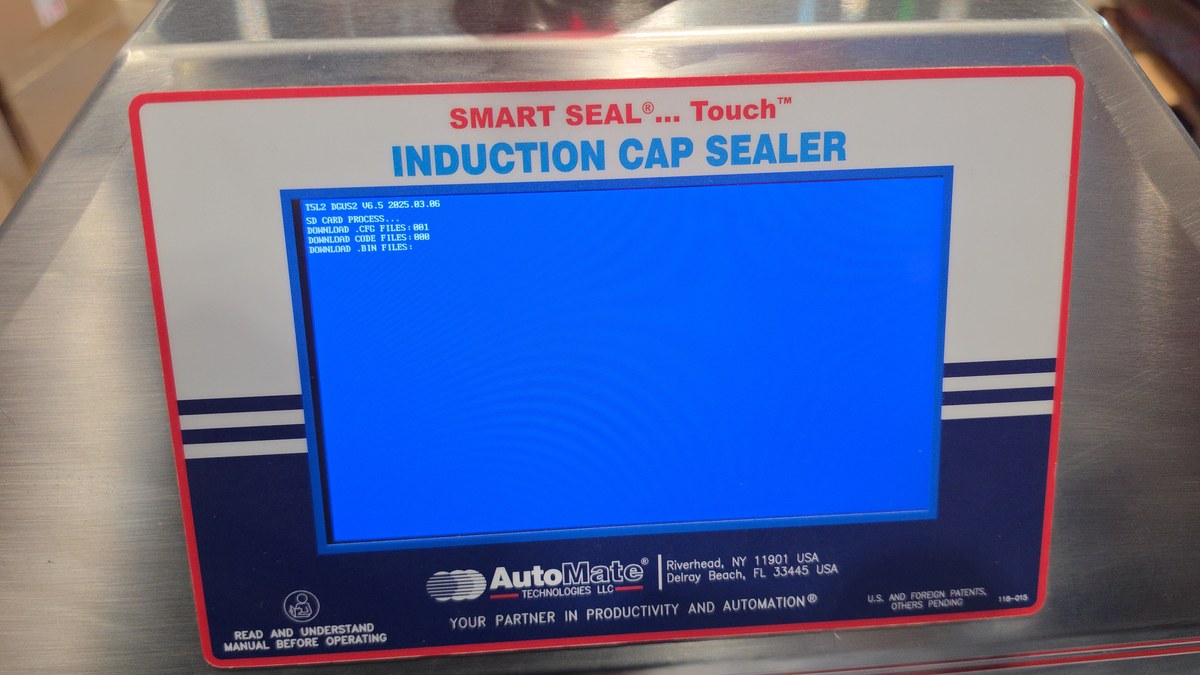

Rotate the main rotary disconnect switch back to the ON (I) position. The AM-275 Smart Seal Touchscreen powers up into the bright blue DGUS process screen shown here and begins reading the SD card.
Visual Checkpoint: A blue DGUS process screen should appear after power is restored. Keep the machine powered during the update sequence.
STEP 04
04 / FILE TRANSFER & CHECKSUM
Monitor On-Screen Download Progress

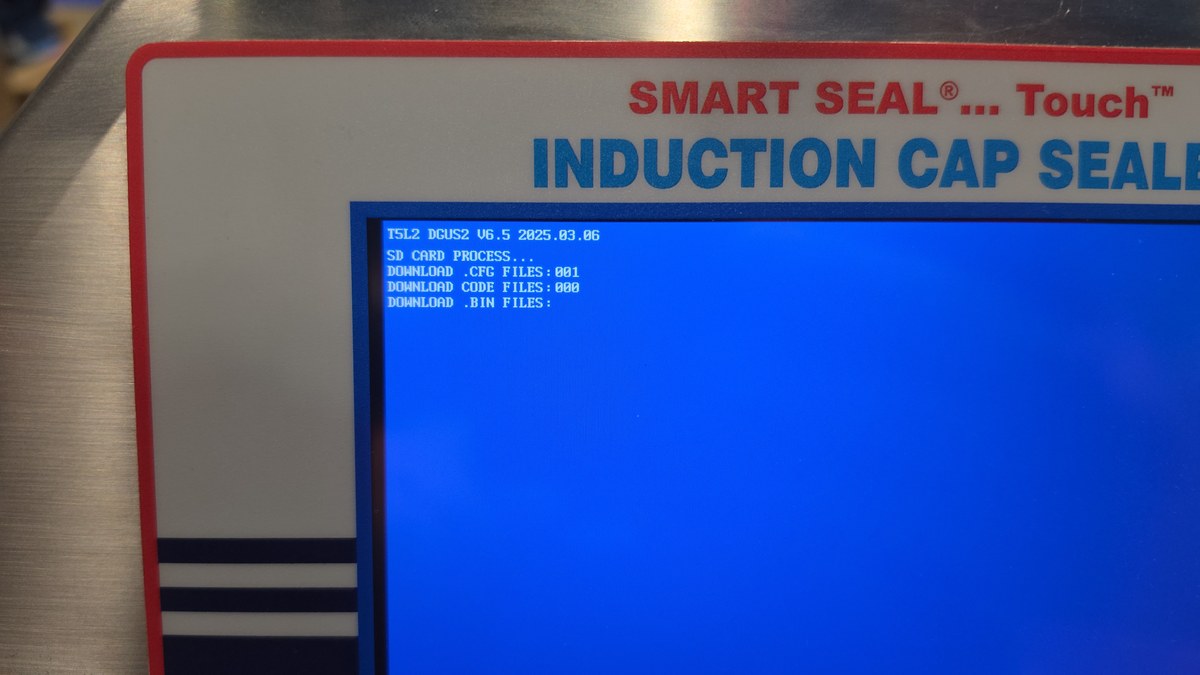

The bootloader screen displays the controller kernel version (T5L2 DGUS2 V6.5) and sequential download counters for:
• .CFG FILES (Display configurations)
• .BIN / .DZK FILES (Fonts, graphics, and system binaries)
• .ICL FILES (UI icon and screen image libraries)
Allow all packages to transfer until the progress counter reaches completion.
Visual Checkpoint: The process screen lists file types and progress counters, including
.CFG, .CODE, .BIN, .DZK, and .ICL. Do not interrupt the process while counters are updating.
STEP 05
05 / COMPLETION & SD CARD REMOVAL
Confirm "SD CARD PROCESS ... END !" & Remove Card

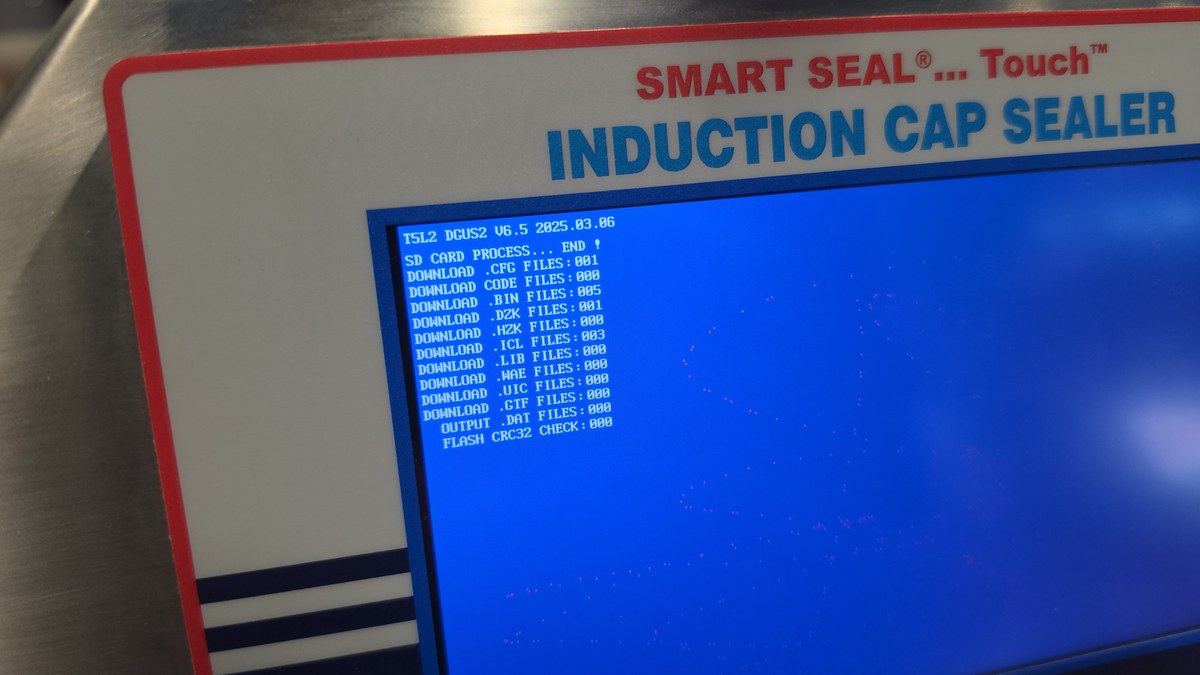

When the screen shows SD CARD PROCESS ... END ! and the displayed FLASH CRC32 CHECK is complete, the visible update cycle has finished. Power the machine OFF, remove the SD card, then power it back ON for a normal HMI startup.
Visual Checkpoint: Remove the card after completion and before normal operation. Final narrated confirmation criteria will be added when the video audio is available.
📹 Video Walkthrough Integration (Part 1 & Part 2)
Staged for the primary walkthrough video (Part 1 - long overview) and quick-flash clip (Part 2 - short summary). A dedicated Power Board flashing guide will be appended beneath once the second demonstration video is uploaded.
Diagnostic guide
Troubleshooting Common Faults
Use the likely causes and immediate corrective actions below to return your line to a valid seal condition.
Foil liner does not adhere to bottle rim
Likely cause: insufficient time/power, loose cap, or reversed liner. Action: increase time in 0.2 second increments and confirm cap torque / liner orientation.
Liner burns, melts through, or smokes
Likely cause: time or power exceeds application need. Action: reduce time by 0.3 seconds; after cooling, inspect the head for residue.
Seal is incomplete on one side
Likely cause: tilted head, off-center placement, or uneven container lip. Action: hold the head level and centered; verify container geometry.
Over-temperature alert or error buzzer
Likely cause: duty-cycle heat load or blocked airflow. Action: idle the unit with fan running for 10–15 minutes and clear ventilation paths.
Preventative care
Routine Maintenance & Storage
Protect long-term reliability with basic inspection, cleaning, and ventilation care.
Daily maintenance
- Disconnect power before exterior cleaning.
- Inspect sealing head for residue or melted material.
- Inspect cord and trigger cable for wear.
Monthly inspection
- Clear dust from fan vents using dry compressed air.
- Inspect wand connector pins for oxidation or loose seating.
- Verify time display against a reference stopwatch.
Scan for online support
Open this AM-275 portal from the production floor.
Use the QR code to open the web address on a mobile device. The code resolves to the planned customer portal address and will work as soon as am-275.com is registered and routed to this project.
